Dimension Sheet for medium pressure Ejectors

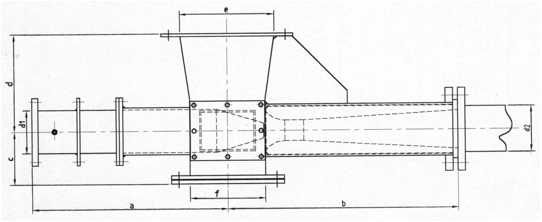

Ca.-Dimensions of ejectors
d2 |
d1 |
a |
b |
c |
d |
e |
f |
DN50 |
60,3 |
331-450 |
399 |
110 |
200 |
200 |
160 |
DN65 |
60,3 |
275 |
396 |
111 |
200 |
200 |
160 |
DN80 |
88,9 |
400-530 |
486-515 |
140 |
260 |
250 |
200 |
DN100 |
114,3 |
400-495 |
596-605 |
140 |
260 |
250 |
200 |
DN125 |
139,7 |
475 |
746 |
160 |
300 |
300 |
250 |
DN150 |
139,7 |
475-698 |
871-883 |
160 |
300 |
300 |
250 |
DN175 |
193,7 |
575 |
1026 |
200 |
325 |
350 |
300 |
DN200 |
193,7 |
600 |
1171 |
225 |
450* |
400 |
350 |
*high version Measurement are shown in mm
Dimensions shown are examples of available units. The design variations depend on the diffuser required and the customers in/outlet connection requirements. Customization of these units is possible to suit your individual requirements.
